Copper Strip Corrosion Tester RAY-5096A
Product introduction

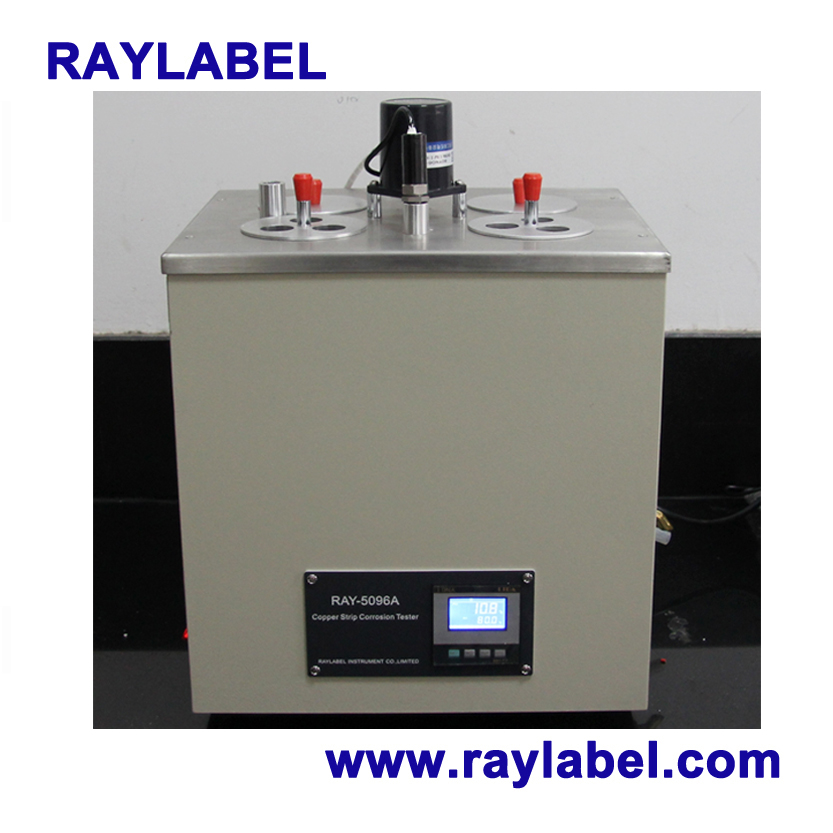

Copper Strip Corrosion Tester RAY-5096A
Order Hotline:0086 13391320338
Product introduction

The instrument is designed and made as per national standard of People’s Republic of China GB/T 5096 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test and ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test. It is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument has functions of temperature controlling, automatic timing and alarming.

I. Main technical features
1. It adopts LCD temperature controller,heater and electric stirrer to form the constant bath. The temperature in bath is uniform. The temperature controller has timing function.It can control the test time and automatically timing. There will be alarm when finished.
2. The instrument has four sample holes. One bomb or three tubes can be put in each hole to be determined.The test efficiency is high.
3. The instrument equips a standard color board imported from USA. It can meet requirements of test method.
II. Main technical specifications

1. Power supply:  AC(220±10%)V, 50 Hz

2. Total power consumption: ≤1800W

3. Temperature sensor:  RTD, Pt100

4. Temperature range:  Ambient to 100 ℃,can be set at will

5. Temperature control accuracy:  ±1 ℃

6. Time controlling range:  1 minute~24 hours, can be set at will.

7. Sample testing positions:  Four positions

8. Sample quantity at one test: 4 pieces~12 pieces

9. Ambient temperature:  15℃~35℃

Relative humidity:  ≤ 85%

10. Dimension:  440mm×330mm×560mm

11. Net weight: 16kg.
