UV-VIS Spectrophotometer

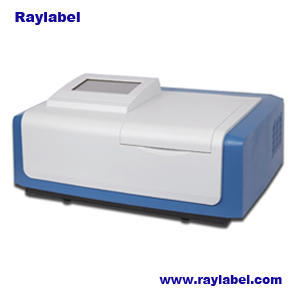

UV Vis Spectrophotometer RAY-6S
Product introduction
UV Vis Spectrophotometer RAY-6S
Order Hotline:0086 13391320338
Product introduction

Product Description

Split beam optical system
Automatic wavelength settings Color touch-screen LCD 7 inch
Automatic cuvette holder moving
Automatic zero and full scale adjustment.
Equipped with USB port.
Internal printer optional.
Software optional.

The spectrophotometers adopt split beam survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. 7-inch color touch screen LCD display, cutting-edge user interface, powerful functions, and easy operation. The automated eight-position cuvette holder facilitates the operation under each measurement mode.
With powerful functions, the equipment shows great performance in qualitative and quantitative testing, such as:
Full-spectrum scanning
Detailed spectrum scanning
Time-based kinetics determination
Linear regression Concentration direct reading Peak/Valley detecting
Multi-wavelength measurement
The equipment is designed with sophisticated power protection system. With high capacity of internal memory, it can store testing results, scanned images, regression equations and correction data. Therefore, it follows a fast initialization when power on.
The instrument can be connected with dedicated printer, which can print testing results, or draw curve from spectral scanning, fixed wavelength time-based scanning, and linear regression.
There is a USB port on the device, and UVwin8 software is optional to order. The device can be connected to a PC, which
Can not only enhance the performance in data testing and spectrum scanning, but also expand the memory to save more testing results.

Models: RAY-6S Scanning
Operation and Display: 7 in. Touch Screen
Wavelength Range: 190-1100 nm
Wavelength MPE: ± 0.5nm
Wavelength Repeatability: ≤ 0.2nm
Transmittance MPE: ± 0.3%T
Transmittance Repeatability: ≤ 0.15%T
Transmittance Measuring Range: 0.0%-200.0% (T)
Absorbance Measuring Range: -0.301-4.000 (A)
Spectrum Bandwidth: 2nm
Stray Light: ≤ 0.03%T
Drift: ≤ 0.0009A/0.5h, (250nm/500nm, 2h warm up)
Signal Noise: 0%T Noise≤ 0.10%T
Baseline Flatness: ± 0.002A(200-1090nm)
Overall Dimensions: 550× 430× 200(mm)
G. W.: 23kg
Software: Optional

User manual 1pc
1cm glass cuvette 4pcs
1cm quartz cuvette 2pcs
Power cable 1pc

Thermal plotter
10mm cuvette holder
50mm cuvette holder
100mm cuvette holder
UV WIN8 software
