Kinematic Viscometer RAY-265D
Product introduction

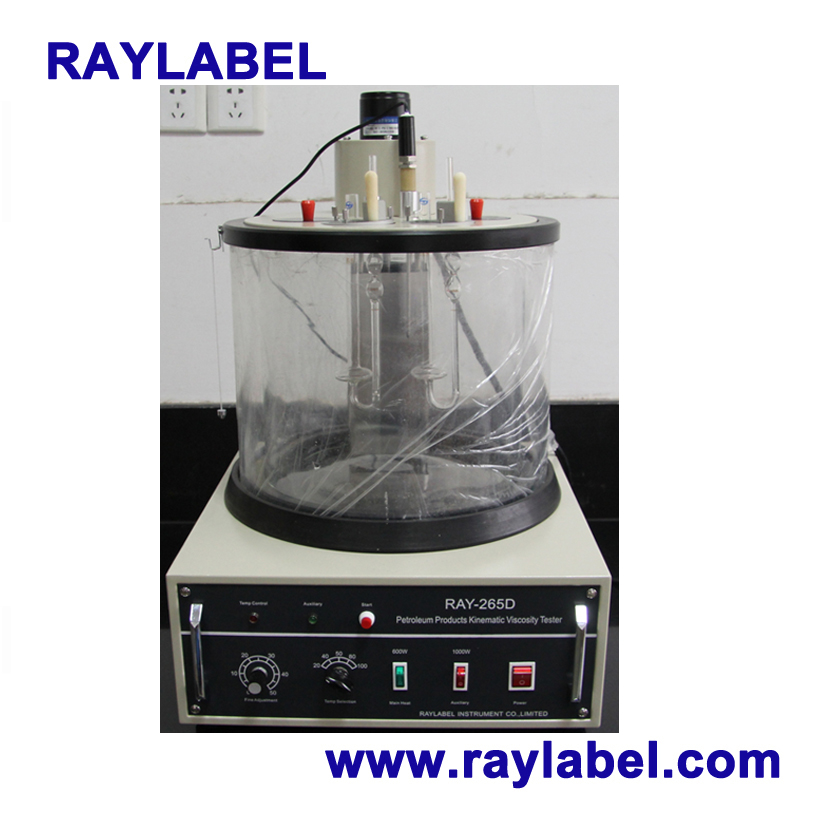

Kinematic Viscometer RAY-265D
Order Hotline:0086 13391320338
Product introduction

Summary
This instrument is designed and made as per the industry standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.

I. Main technical features

1. Equipped with timing.

2. It adopts hard glass bath and heat preservation cover(double shell).Good heat prevention and easy to observe the sample. It adopts electric stirrer to ensure the uniform of bath temperature.

3. It can do two samples at the same time.

4. High accuracy.


II. Main technical specifications

1. Power supply: AC 220 ± 10 %, 50 Hz.

2. Total power consumption: ≤1800W.

3. Stirring motor:1200 RPM

4. Temperature range: Ambient to 100.0℃.

5. Temperature control accuracy: ±0.01℃.

6. Timer: 0.0s~999.9s

7. Constant temperature bath: 20L, double shall structure.

8. Ambient temperature:15℃~+35℃

Relative humidity: <85%

9. Capillary viscometer tubes(Pinkevitch viscometer):

    7 pieces in total. The inner diameters for each: 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm

10. Dimension: 530mm×400mm×670mm

11. Net weight: 20.5Kg




Note:


This instrument is equipped with 7 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.And the water bath has three holes.The user can put three viscometers .
