Product Name and Specifications

2.1. Name and Model

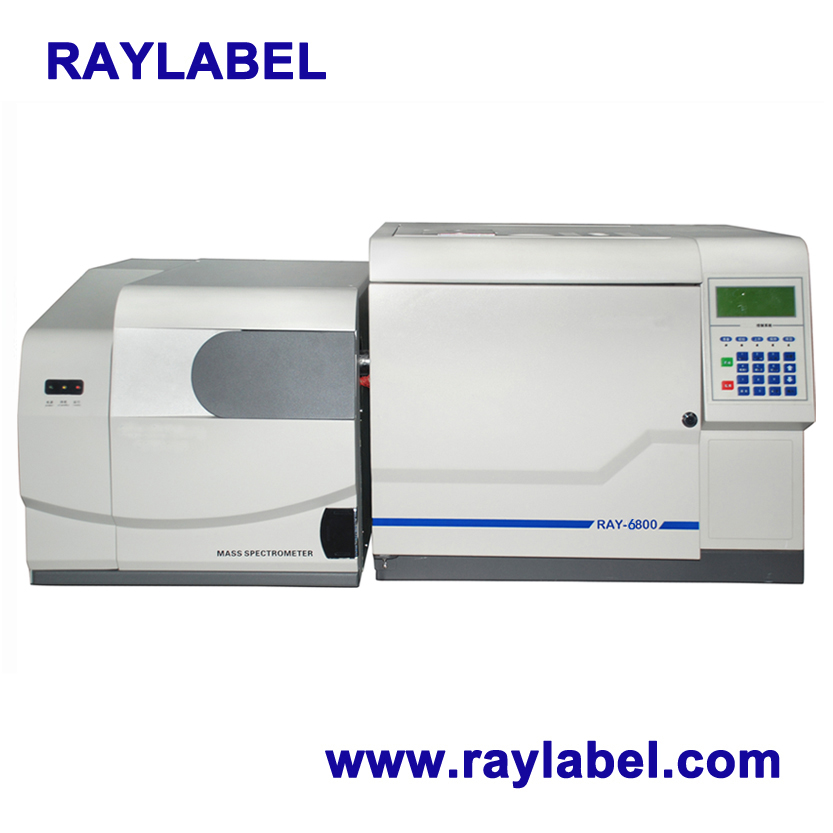

Name: Gas Chromatograph Mass Spectrometer

Model: GC-MS RAY-9800

2.2. Manufacturer: Raylabel  Instrument Co., Limited.

2.3. Working Condition

● Working temperature: 15-30℃

● Relative humidity: ≤70%

● Power supply: AC 220±5V (Remarks: the power supply also can be 110±5V)

2.4. Technical Performance and Specifications

2.4.1 GC Specification

Electronic pressure/flow control system(EPC/EFC) for full-automated RAY-9800 system.

1. Inlet temperature: Max 450℃

2. Pressure Range:0~100 psi, ±0.002psi

3. Pressure Control Mode: Electronic pressure control(EPC), support CV and CC.

4. Split Mode: Split/Splitless, Max. Split Ratio:1000:1

5. Heating Rate: Up to 120℃/min

6. Column Oven Working Temperature: Ambient Temperature±4℃-450℃

7. Temperature Programming: 8 ramps / 7 steps

2.4.2 Mass Spectroscopy Specifications:

EI Source Ionization Energy: 5eV - 250 eV

Mass Range: 1.5-1000amu

Ion Source Temperature: 100-350℃

GC-MS Interface temperature: max:450℃

Filament emission current:0-350uA

Stability: ± 0.1 amu /48 hrs

Sensitivity: Full scan, 1pg OFN at m/z 272 with S/N>30:1

Scan rate: >10000 amu

Vacuum: Turbo molecular pump(TMP(67L/s)

Detector: High Energy Dynode Electron Multiplier.

2.4.4 Software:

User-friendly interface and optimized function setting provide the best operation experience. The software “ChemAnalyst” controls autosampler, gas chromatograph. and mass spectroscopy. Full Scan and selective ion monitoring(SIM) are available. In addition, the latest NIST 2014 library are embedded in this powerful software searching mode.

3. Peripherals of RAY- 9800(Optional and charged additionally)

3.1Computer

3.1.1 Data system: Pentium IV based PC.

3.1.2 Configuration: OS – Windows XP/ Windows 7

3.1.3 Memory: 1G or better

3.1.4 Monitor: 17” SVGA LCD

3.1.5 HD: 500G or more

3.1.6 DVD-ROM: 24X or more

3.1.7 CPU: Pentium IV, 3.0G

3.2 Color Ink-Jet Printer

3.3 Regulated Power Supply

3.3.1 Function: To provide stable and reliable power supply to the instrument.

3.3.2 Optional models

1. Purified AC regulated power supply

2. Online UPS

4. Spare parts and accessories

4.1. Vespel ferrule 0.4mm:10pcs

4.2 Syringe:10ul

4.3 Standard tool kit

4.4 GC-MS DB-5MS column:0.25mm*30m*0.25mm

4.5 Varian Mechanical rotary pump.

5. Necessary Technical Documents Enclosed：

5.1 Operation Manual

5.2 A List of the Parts

5.3 Inspection Report

5.4 CE certificate
