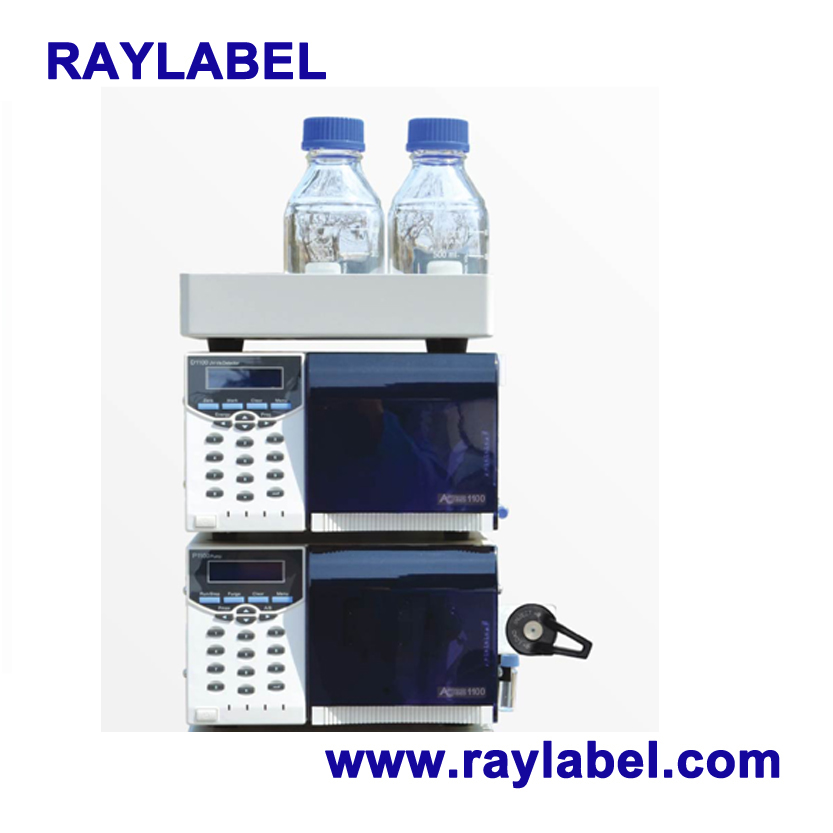

RAY-1100   Isocratic HPLC System

1Set

P1100   High Pressure Constant Flow Pump

1

1)   Double plunger reciprocating pump

2) Flow Range:0.001mL/min-10.000mL/min;
  Setting Step Size:0.001mL/min

3)   Flow Accuracy:≤±0.3% (1.00ml/min, H2O,R.T.,8.5MPa)

4)   Flow stability:RSD≤0.1% (1.00ml/min, H2O,R.T.,8.5MPa)

5) Maximum Pressure:42MPa

6)   Display Pressure Error:≤±3.0%

7) Pressure Fluctuation:≤1.0%

8)   Power Dissipation:80W

9)   External Dimension
  (Length x Width x High):420mm×260mm×160mm

D1100   UV/VIS Detector

1

1)Wavelength   Range:190-700nm

2)Wavelength   Repeatability:±0.1nm

3)Wavelength   Accuracy:≤±1.0nm

4)Spectrum   Band Width:8nm

5)Response   Time:0.0s-4.9s

6)Linearity   Range:1.8AU (5%)

7)Baseline   Noise:≤±1×10^-5AU

8)Baseline   Drife:≤2.0×10^-4AU/h

9)minimum   Detectable Concentration:4.0×10^-9g/mL
  (Naphthalene in Methanol Solution)

10)   Detector Cell:Optical Path--10mm,Volume--10μL

11)Light   Source:Deuterium Lamp

12)Power   Dissipation:100W

13)External   Dimension
  (Length x Width x High):420mm×260mm×160mm

7725i   Manual Injector

1

Supersil ODS2 5μm ID4.6×200mm

1

Elitapex   Workstation (Without Computer & Printer)

1

VB1100   Valve Mounting Frame

1

Agress   1100 System Kits

1

Solvent   Bottle 1000mL

1

25μL   Syringe

1

General   Column Joint

1

1)   Ultrasonic Bench Top Cleaner

1

2)   Φ13mm Nylon (organic) filter (100/pk)

1

3) Φ13mm Cellulose (aqueous) filter (100/pk)

1

4)   Diaphragm Vacuum Pump

1

5) Φ50mm Solvent Filter (Include Nylon and   Cellulose, 100/pk)

1
