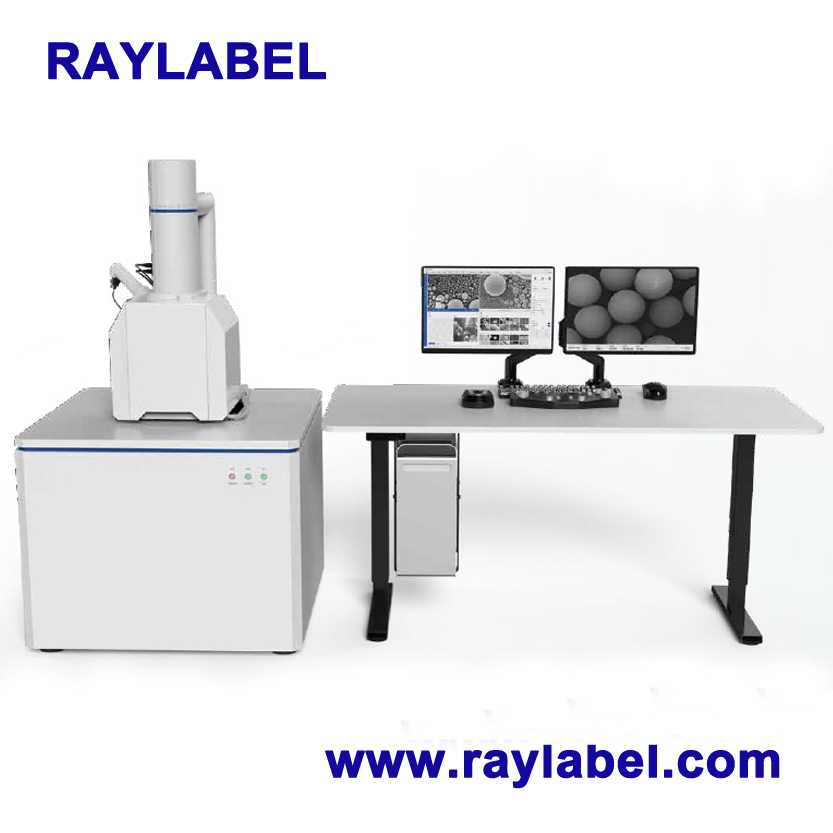

Scanning Electron Microscope System

Tungsten filament  RAY-2100 mainframe:

Tungsten lamp filament emission system

The 3-axis motorized sample stage

SE detector

Resolution: 3.9nm@20kV, SE,     4.5 nm @ 20 kV (BSE)

Magnification: 1~300,000

Optical and Horizonal Camera with Self Navigation

SEM operation software

SEM operation computer and FHD display /

Windows 10 operating system

Consumptive accessories

Secondary electron detector (SE):ETD detector, using crystal   scintillator (YAG/YAP) probe  1unit

Molecular pump: nEXT240- UK Edwards  Pumping speed 240L/s   1unit

Mechanical pump: VRD-16 Pumping speed 16m3/h   1unit

Software:SEM operation software:       1unit

(1)Multi-channel imaging is possible, and different signals can be imaged   simultaneously on the split screen

(2)Image saving: Maximum   48000x32000, Format: TIFF,JPG,PNG,BMP

(3) Scanning speed: Four preset scanning modes (fast scanning, medium   scanning, slow scanning, and selected area scanning), the scanning speed can   be freely configured, and the scanning mode of the area of interest is also   supported

(4) Measurement function:   supports a variety of measurement marking tools, such as length, angle,   diameter, etc.

(5)Automatic adjustment function: automatic focus, automatic astigmatism,   automatic brightness contrast, etc.

(6) In MIX mode, each   detector receives pure SE or BSE signals respectively. For example, the   signals of ETD and BSED detectors are automatically mixed according to the   needs, and the ratio is adjustable.

Vertical camera: Optical navigation, vertical angle   camera    1unit

Horizontal camera: Real-time monitoring in the sample   warehouse, horizontal camera  1unit

Workstation(Computer): HP Z2G5 i5/16G/256G SSD/1TB   SATA/DVDWR/win10 Pro   1unit

Monitor and monitor stands: HP E24I G4  Monitor 24 inches with 1920*1200,  Dual display stand   1unit

Toolkit:  Dust-free cloth 6 inches, 100   pieces, disposable nitrile gloves 50 pieces, size M, polishing paste 250g,   ball head hex wrench 7-piece set 09113, screwdriver 4-piece set,   sample-specific tweezers RGRS-1667   1unit

Spare parts package: Objective diaphragm, anode   diaphragm, filament pre-centering assembly    1unit

Product introduction

RAY-2000 is a basic multi-functional analytical tungsten filament scanning electron microscope. The resolution at 20 kV can reach 3.9nm, support the upgrade of 30 kV voltage, and observe the microstructure information of submicroscale samples.It has a larger mobile range than the desktop electron microscope,suitable for rapid screening of samples to be tested, more expansion interfaces, can be equipped with BSED, EDS and other accessories, so that the application field is wider.

Clear and Simple Interface

The features are simple and easy to operate. Even beginners can get started quickly after the quick learning.

Advanced Automation Features

Auto brightness contrast, autofocus, and auto image dispersion are all adjustable with one click.

Extensive Measurement Functions

Photo management, preview, and editing functions with measurement functions such as length, area, roundness, and angle.
