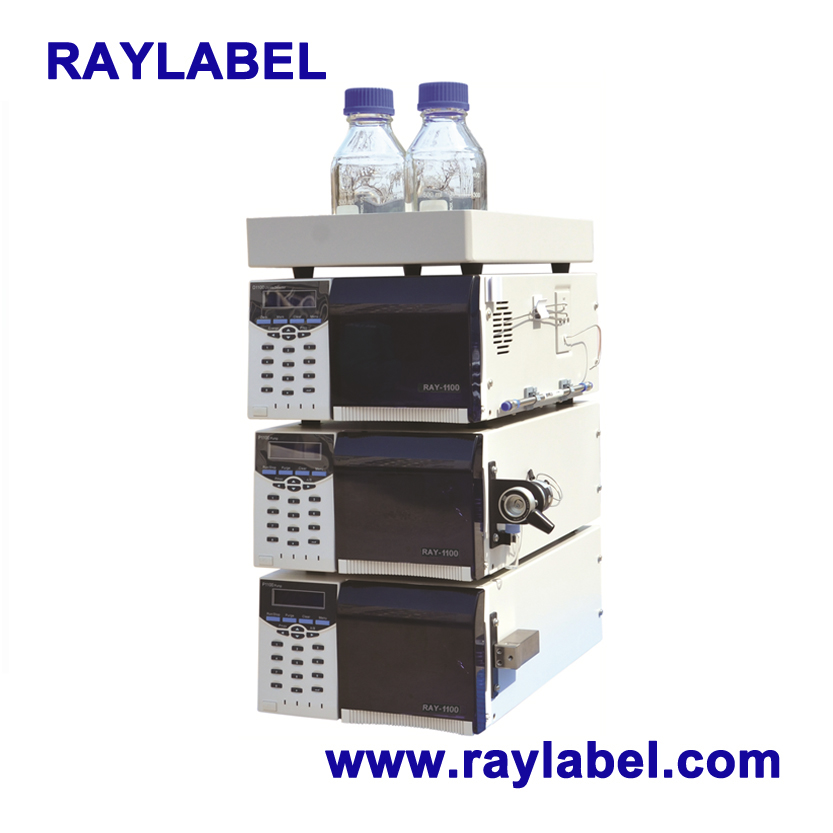

Product Description Description Qty RAY-1100 Gradient HPLC System 1Set P1100 High Pressure Constant Flow Pump 2 1) Double plunger reciprocating pump 2) Flow Range:0.001mL/min-10.000mL/min; 3) Flow Accuracy:≤±0.3% (1.00ml/min, H2O,R.T.,8.5MPa) 4) Flow stability:RSD≤0.1% (1.00ml/min, H2O,R.T.,8.5MPa) 5) Maximum Pressure:42MPa 6) Display Pressure Error:≤±3.0% 7) Pressure Fluctuation:≤1.0% 8) Power Dissipation:80W 9) External Dimension D1100 UV/VIS Detector 1 1)Wavelength Range:190-700nm 2)Wavelength Repeatability:±0.1nm 3)Wavelength Accuracy:≤±1.0nm 4)Spectrum Band Width:8nm 5)Response Time:0.0s-4.9s 6)Linearity Range:1.8AU (5%) 7)Baseline Noise:≤±1×10-5AU 8)Baseline Drife:≤2.0×10-4AU/h 9)minimum Detectable Concentration:4.0×10-9g/mL 10) Detector Cell:Optical Path--10mm,Volume--10μL 11)Light Source:Deuterium Lamp 12)Power Dissipation:100W 13)External Dimension 1100 Gradient Mixer 1 Rheodyne7725i Sampler Injector 1 Supersil ODS2 5μm ID4.6×200mm 1 Workstation (Without Computer & Printer) 1 VB1100 Valve Mounting Frame 1 1100 Gradient System Kits 1 Pretreatment (Optional) 1Set 1)Ultrasonic Bench Top Cleaner 1 2)Diaphragm Vacuum Pump 1 3)Φ50mm Solvent Filter (Include Nylon and Cellulose, 100/pk) 1 4)Constant Temperature Water Bath 1
Setting Step Size:0.001mL/min
(Length x Width x High):420mm×260mm×160mm
(Naphthalene in Methanol Solution)
(Length x Width x High):420mm×260mm×160mm
