Technical Specifications:
1. Magnet type:permanent magnet;Magnetic field intensity:0.50±0.01T;
2. Magnetic field uni formity:≤30ppm;
3. Magnetic field stability:≤300Hz/Hour;
4. Magnet temperature control:dual system of nonlinearprecise temperaturecontrol,temperature tunable from 25℃-35℃;
5. RF field:pulse frequency:1-30MHz;frequency controla ccuracy:0.1Hz;Pulsaccuracy:10 ns;
6. RFpower amplifier>300W;
7. Maximumbandwidth:5000KHz;
8. Probe:RoomTemperature18A coil with inner diameter of 20mm; Minimum TE: 100μs;
9. Max imumechonumberis18,000;
10. Based on PC Ibus industrial control computer platform,8-core CPU,I7 processor,8G DDR memory, 1T hard disk.
11. Operating Conditions
- Power supply:220V,50Hz;
- Temperature:22-28°C;
- Humidity:30-70%;
12. Dimensions(L,W,H):Magnet box:445mm×505mm×371mm,~70kg;
13.Control cabinet:560mm×750mm×700mm,~100kg;Net Weight:~170Kg.

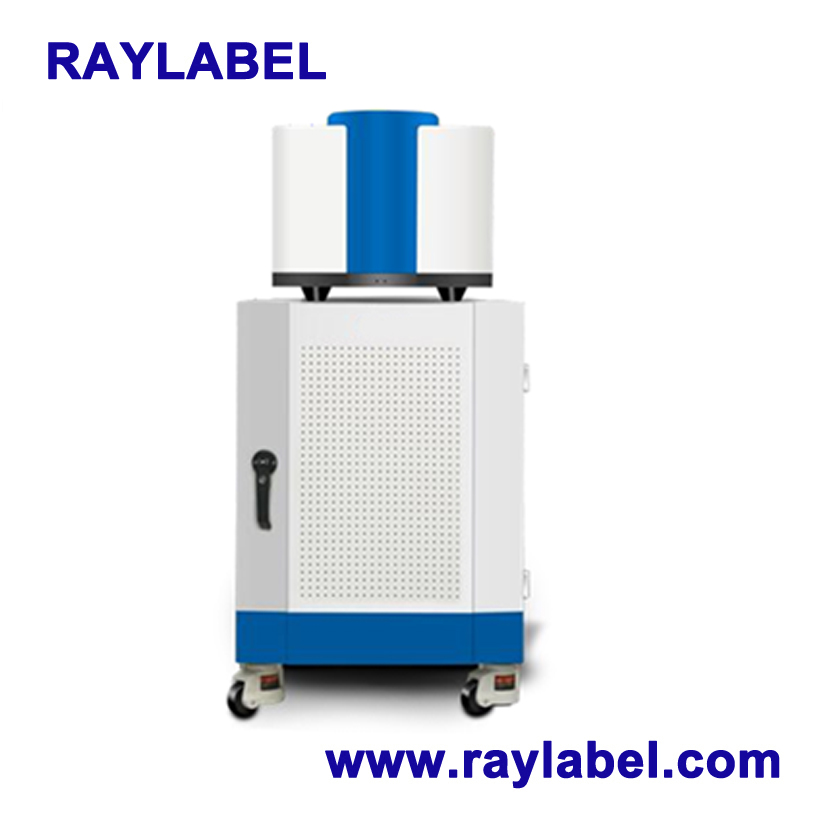

NMR Ananlyzer Standard configuration | |||
1.Hardware | Component | Quantity | |
(1)Magnet unit | Magnet cabinet(with automatic sampling module) | 1 | |
Magnet | 1 | ||
(2)RFunit | RF unit box | 1 | |
Preamplifier | 1 | ||
RF power amplifier | 1 | ||
Magnet temperature control | 1 | ||
Heating system | 1 | ||
Power supply system | 1 | ||
(3)Spectrometer unit (including ICC) | Industrial control computer | 1 | |
Pulsesequencegenerator(PSG) | 1 | ||
Direct digital frequency Synthesis(DDS) | 1 | ||
Analog-to-digital converter(ADC) | 1 | ||
Probecoil（FLAT） | Probe:Ø 20mm; Samplesize:Ø16mm*H40mm |
1 | |
2.Software | Component | Quantity | |
Software | NMR AnalysisSoftware | 1 | |
3.Accessory | Component | Quantity | |
(1)Accessory | Software USB | 1 | |
Test tube stand | 1 | ||
USB Splitter | 1 | ||
Debuggingtools | Special tools | 1 | |
50Ω terminal | 1 | ||
BNC adapter assembly | 1 | ||
Testing line | 2 | ||
Fuses | 5 | ||
(2)Computer peripherals | LCD display | 1 | |
Mouse,keyboard | 1 | ||
