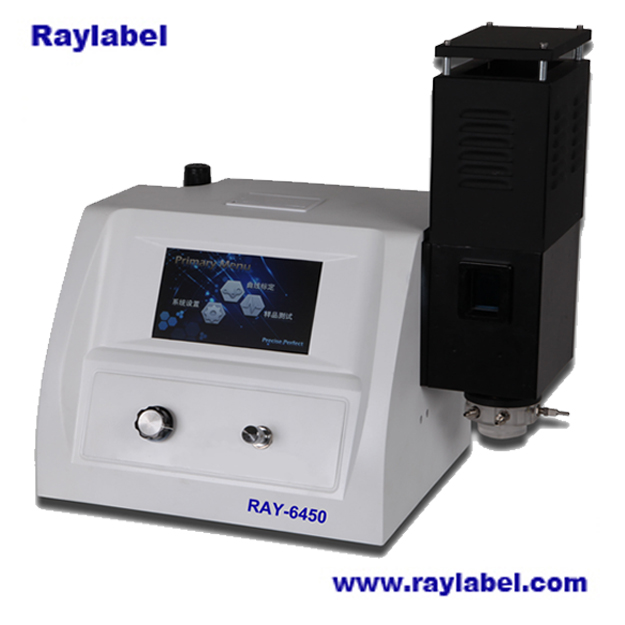

A lot of new technology and new materials are adopted. Such features as LCD display, menu-type
Instruction operation, curve storage, flameout protector and outside printout are enabled by the Application of top grade embedded mono-chip computer circuit.
7 inch touch screen LCD
Direct concentration read-out
Pre-selection of flame sizes
Measuring range changing
Air compressor including
Automatic Calculation of correlation coefficient
Flameout protection device
LPG burning gas
Specifications
RAY-640 | RAY-6410 | RAY-6430 | RAY-6431 | RAY-6432 | RAY-6440 | RAY-6450 | |||||
Sensitivity | K | 0.156ppm | 0.156ppm | 0.156ppm | |||||||
Na | 0.184ppm | 0.184ppm | 0.184ppm | ||||||||
Li | ------ | optional | 0.1ppm | ------ | ------ | 0.1ppm | |||||
Ca | ------ | ------ | ------ | 2ppm | ------ | 2ppm | |||||
Ba | ------ | ------ | ------ | ------ | 6ppm | ------ | 6ppm | ||||
Range | K | 0-100ppm | 0-100ppm | 0-100ppm | |||||||
Na | 0-160ppm | 0-160ppm | 0-160ppm | ||||||||
Li | ------ | optional | 0-100ppm | ------ | ------ | 0-100ppm | |||||
Ca | ------ | ------ | ------ | 0-1000ppm | ------ | 0-1000ppm | |||||
Ba | ------ | ------ | ------ | ------ | 0-3000ppm | ------ | 0-3000ppm | ||||
Linearity | K | 0.195ppm(0.39-3.12)ppm | 0.195ppm(0.39-3.12)ppm | 0.195ppm(0.39-3.12)ppm | |||||||
Na | 0.69ppm(1.15-9.2)ppm | 0.69ppm(1.15-9.2)ppm | 0.69ppm(1.15-9.2)ppm | ||||||||
Li | ------ | optional | 0.15ppm(0.25-5)ppm | ------ | ------ | 0.15ppm(0.25-5)ppm | |||||
Ca | ------ | ------ | ------ | 3ppm(5-100)ppm | ------- | 3ppm(5-100)ppm | |||||
Ba | ------ | ------ | ------- | ------ | 9ppm | ------ | 9ppm | ||||
Repeatability | 1 % CV for 20 consecutive samples | 1 % CV for 20 consecutive samples | 1 % CV for 20 consecutive samples | ||||||||
Respond time | <8s | <8s | <8s | ||||||||
Sample uptake | <6L/min | <6L/min | <6L/min | ||||||||
Package | N.W : 18kg G.W. 22kg 770 x 560 x 390mm 0.168M3 | ||||||||||
