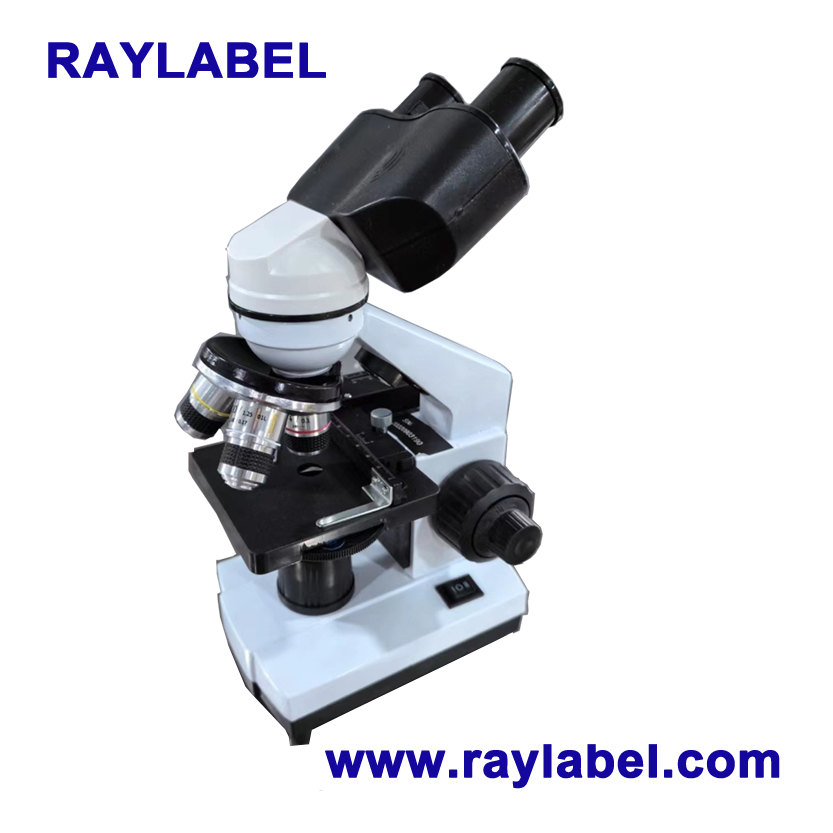

Biomicroscope has a modern frame on which a 45° tilted eyepiece, binocular head can be mounted. The coarse adjustment is very precise and convenient. It is also equipped with high-qualityachromatic objective lens, wide field eyepiece and adjustable LED lamp to ensure optional imaging. It is widely used in universities,health institutions, scientific research institutes, forestry and agricultural departments for inspection, teaching demonstration, bacterioscopy and cell microscopy.
Standard Outfit of Biological Microscope
Objective | 4X, 10X, 40(S) |
|
100X(S,Oil) |
| |
Eyepiece | WF10X |
|
WF16X | optional | |
Viewing Head | Binocular Head |
|
Converter | Three holes |
|
Stage | Monolayer wroking stage ,area:90mmx90mm |
|
Power Supply | By External AC Adaptor,Or By Batteries(Not Included) |
|
Illumination | Dual LED Light.Up/Bottom Illumination |
|
Specification of Standard Accessories
1. Objectives
Category | Magnification | Numerical aperture | Working distance |
AchromaticObjectives ( black or white) | 4X | 0.10 | 37.5 |
10X | 0.25 | 7.316 | |
40X | 0.65 | 0.632 | |
100X(Optional) | 1.25 | 0.198 |
2.Eye pieces
Designation | Magnification | Diameter Of The Field Of View | Focal Length |
Wide Field | 10X | 18MM | 24.94MM |
Wide Field | 16X(Optional) | 11MM | 15.58MM |
3. Total magnification
Object lens | 4X | 10X | 40X | 100X |
10X | 40X | 100X | 400X | 1000X |
16X(Optional) | 64X | 160X | 640X | 1600X |
