Offline detection of total organic carbon in purified water and water for injection within the pharmaceutical industry; offline detection of total organic carbon in purified water within the food industry; offline detection of total organic carbon in process water within the electronics industry.

Principle:

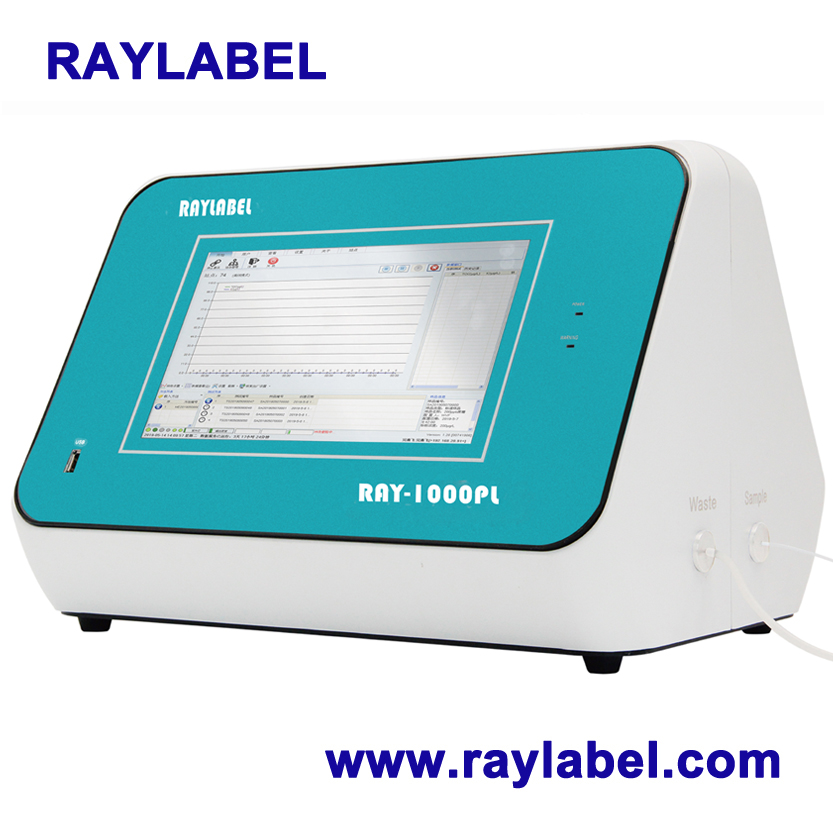

RAY-1000PL, as an offline detection instrument, employs the principle of direct conductivity measurement. Upon entering the instrument, the water sample is split into two streams of equal flow rate. One stream passes through a delay coil into the conductivity sensor for IC detection, while the other stream flows through a spiral quartz glass tube. Under ultraviolet light irradiation, organic matter in the water is oxidized and decomposed into carbon dioxide, which then enters the conductivity sensor for TC detection. Total organic carbon (TOC) is calculated from this differential value: TOC = TC – IC. Finally, waste liquid is discharged through a peristaltic pump via the drain pipe.

Features:

(1) Utilizes ultraviolet photocatalytic oxidation technology, eliminating the need for catalysts or carrier gases;

(2) Fully touchscreen operation for greater time and labor savings;

(3) Multi-level password-based access control;

(4) Built-in methods and sample management functions;

(5) Equipped with audible alarm when readings exceed preset upper limits, protecting the instrument and preventing operational errors;

(6) Compatible with optional automatic sampling devices for various models;

Specification:

(1) Detection Range: (0.000 to 1000.0) μg/L

(2) Repeatability Error: ≤2% 《JB/T 20178-2017》

(3) Indicated Value Error: ±5% 《JJG(Zhe) 98-2007》

(4) Recommended Water Sample Conductivity Range: (0–5.1) μS/cm @ 25°C

(5) Analysis Time: 4 min

(6) Sample Injection Rate: 0.5 mL/min

(7) Dimensions: 400 mm × 300 mm × 300 mm
